TUNNEL WASHING MACHINE SYSTEM

EcoWash HCMC always prioritizes cutting-edge technology in the laundry process, in which the tunnel washing machine system plays a very important role in meeting the increasing demand for industrial laundry in Ho Chi Minh city.

What is a tunnel washing machine system?

The tunnel washing machine system is the most advanced and modern system at the moment. The system is capable of washing an enormous quantity of fabrics with similar features (fabric type, color...). In addition, the process of the tunnel washing machine system is completely closed from loading fabric, washing, pressing water, to drying.

The tunnel washing machine system at EcoWash HCMC

The structure of the tunnel washing machine system

The control system

The central control system can control, and monitor the washing processes quickly and accurately.

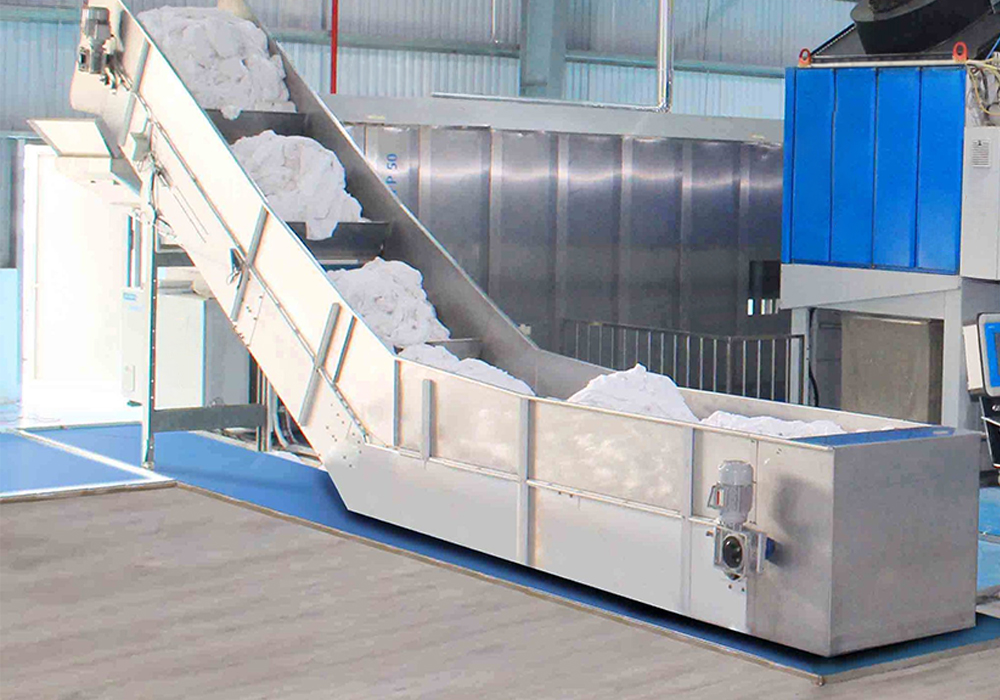

Conveyor belt machine

Conveyor belt machine

The dirty laundry conveyor of the dragon washing machine system often has an automatic weighing feature. Each conveyor can hold laundry up to 50kg. The tape door inlet is easy to operate and safe for the user.

Tunnel washing machine

Includes a tunnel made from very large metal. Inside the drum are separate washing compartments structured like single washing machines. In addition, the washing machine is also designed with many doors to serve many different purposes. Clean water will enter by a separate door, make sure it is separate from the entrance of the dirty fabric store. In addition, clean cloth goods also have a separate exit to avoid cross-contamination during the laundry process.

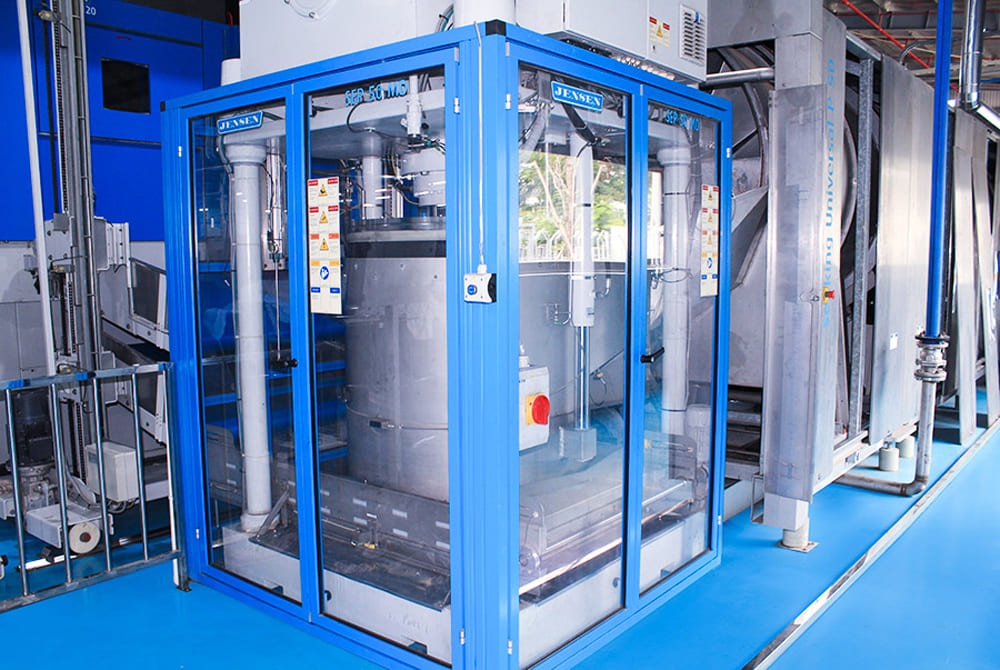

Hydraulic press machine

Hydraulic press machine

This is a device capable of withdrawing water from clothes after completing the washing process, which reduces pressure on the drying process and saves time. With a maximum pressing pressure of 40 or 50 bar, water is drained quickly and gently, retaining minimal moisture, and greatly increasing efficiency.

After - pressing the conveyor

After - pressing the conveyor

The conveyor is capable of transferring fabrics up to 100kg from the hydraulic press machine to the high-capacity dryer. The bags are designed in a double or single form to meet the needs of each washing plant.

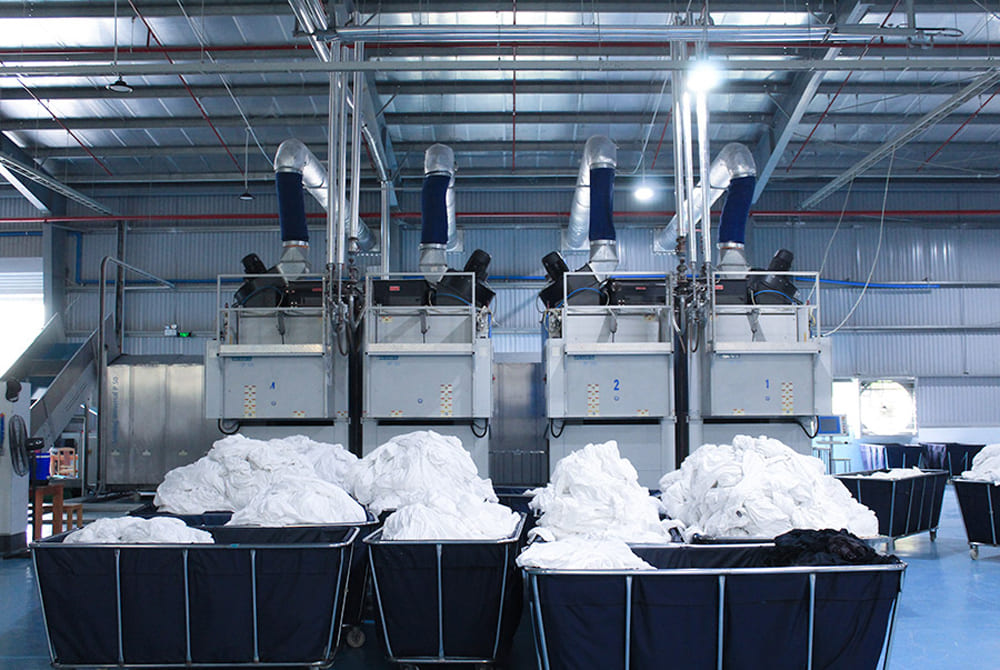

High-capacity dryer

High-capacity dryer

The specialized dryer has a large capacity from 70kg - 130kg with outstanding performance. In addition, the machine also has an automatic lint filter feature, and the ability to dry quickly thanks to the maximum supported airflow.

The working principle of the tunnel washing machine

After being sorted, the fabric will be moved to the belt conveyor and put into the washing tub through a giant metal tunnel. Here, the fabric will be divided into separate compartments. How these compartments work is similar to single washing machines so there will not be any mixing of chemicals or detergent between the compartments, ensuring maximum fabric safety. After washing, the fabric will be taken to a hydraulic press machine, removing the maximum amount of water, and forming fabrics into cubes. After the pressing process is finished, the cubes will be moved to the industrial dryer by a conveyor.

Advantages of the tunnel washing machine system

The tunnel washing machine system is being widely applied by industrial laundry factories because of the following advantages:

• The ability to reuse wastewater can save a large amount of water, reducing costs and negative impacts on the natural environment.
• The central control system works intelligently and accurately.
• The machinery and equipment system is designed and manufactured from high-quality materials which are stainless, resistant to great pressure, and highly durable.
• The system can handle huge volumes of fabric, saving time, and labor, optimizing productivity and washing efficiency.

EcoWash HCMC - The cutting-edge laundry

To provide optimal washing solutions, meet a large volume of fabric products in HCMC and neighboring provinces. EcoWash HCMC is equipped with a tunnel washing machine system with a capacity of more than 1.2 tons/hour along with a combination of much other modern equipment, meeting half of the laundry needs in Ho Chi Minh city.

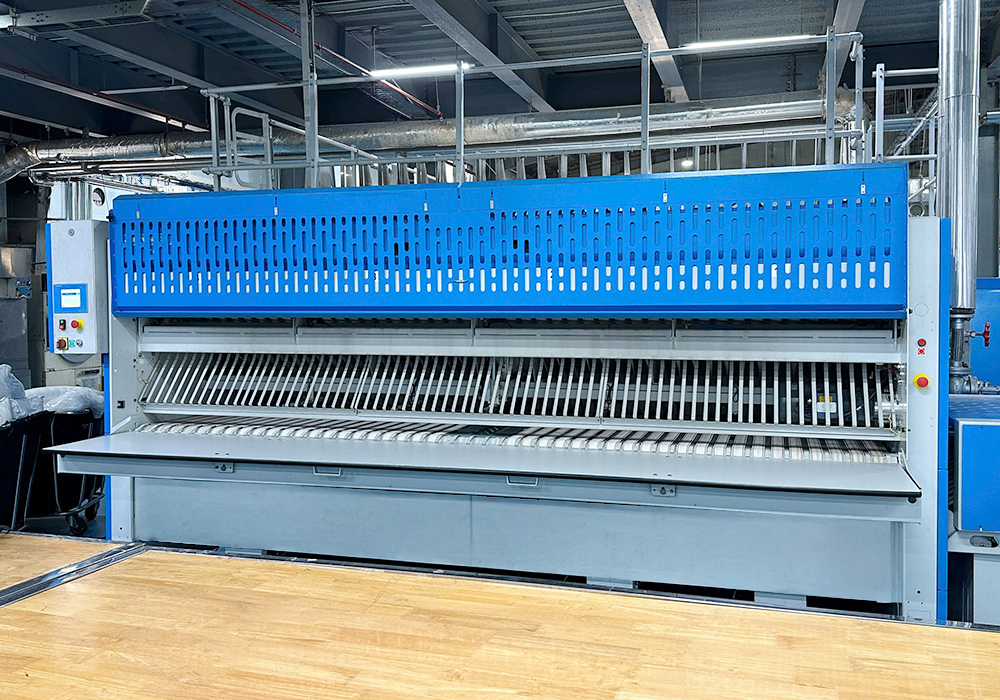

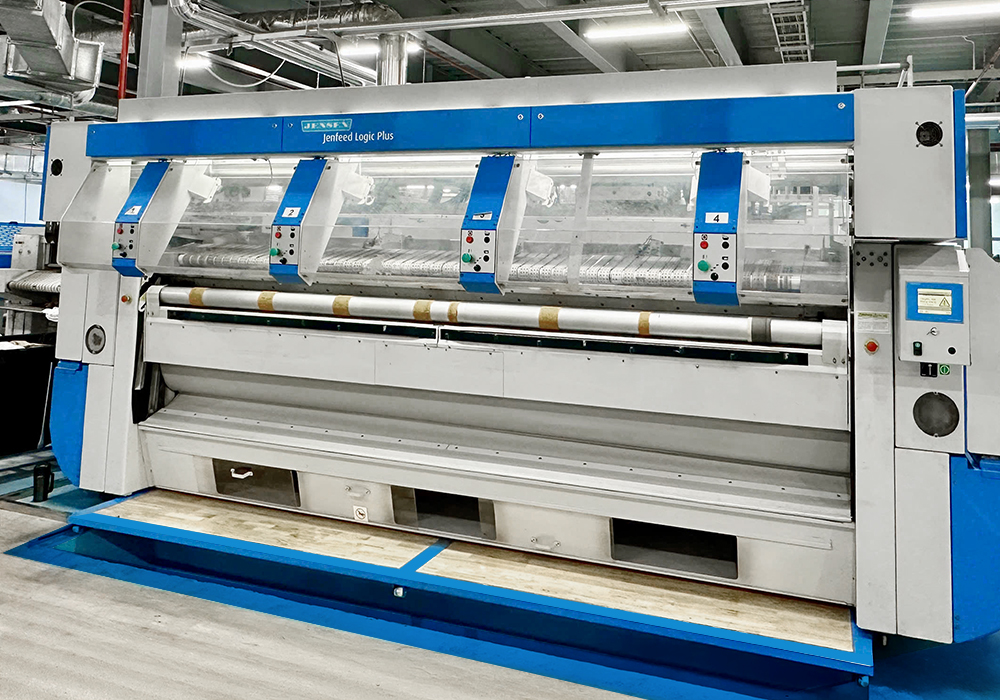

High-speed ironing machine

High-speed ironing machine

The core part of the industrial ironing machine is the stainless steel roller, which is 2 times more efficient than normal rollers. The roller length of the machine can be 3300mm, or 3500mm with a roller diameter of 800mm. In addition, the machine's speed can be up to 50m/min, double that of similar machines, and capable of ironing up to 600 items /hour.

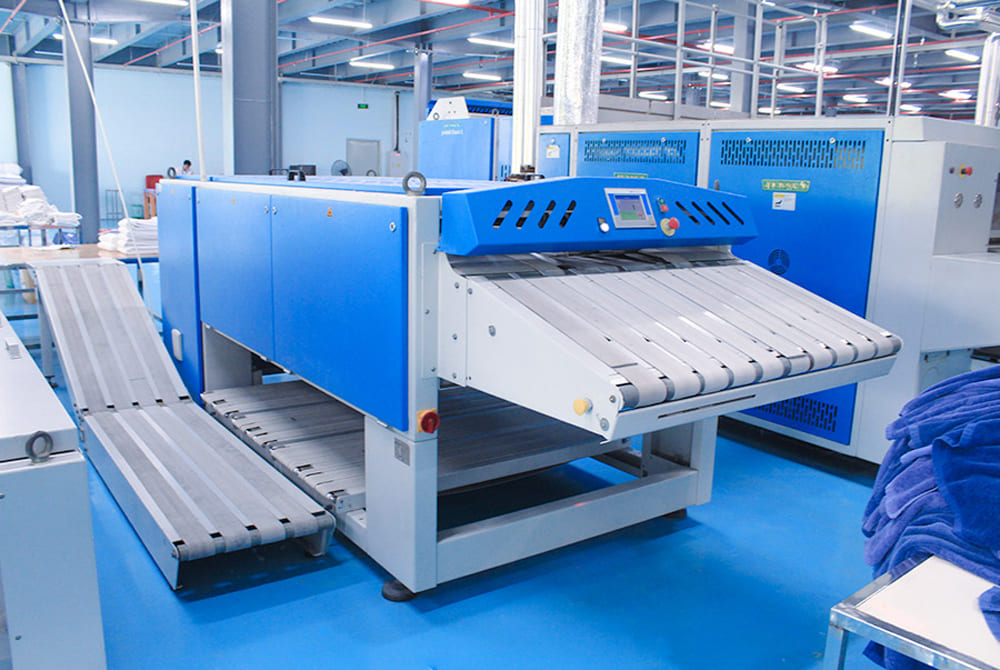

High-speed folding machine

High-speed folding machine

The folding speed of the machine can be up to 50m/min, all the folds are made by air blowing and clamping method. Thanks to technology and software programs installed inside the machine, fabrics are folded quickly and always with the same aesthetic value.

Fabric Stacking Machine

Fabric Stacking Machine

The fabric stacking machine operates according to the pre-installed program, doing the stacking task after folding.

EcoWash HCMC is proud to be the largest industrial laundry in Ho Chi Minh city with the most advanced equipment system. Along with environmental protection criteria, We are committed to providing qualified laundry solutions.

..............................................
